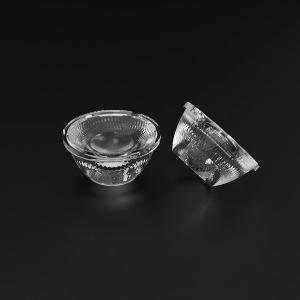

PMMA LED TIR Lens For Indoor Lighting Super Bright Light Spot

Name: PMMA LED TIR Lens For Indoor Lighting Super Bright Light Spot
Brand: Wisertop
Price: 1 USD

Brand Name : Wisertop

Model Number : WT-55@26-36COBL11-Y1

Certification : Rohs

Place of Origin : China

MOQ : 1pc

Price : Shenzhen Wisertop Technology Co.,Ltd

Supply Ability : 100,000 day

Delivery Time : 1-2 weeks

Packaging Details : Master carton

Material : PMMA

Lens type : TIR Lens

Efficiency : 93%

Certificates : Rohs

Working temperature : -40°C~+70°C

Light source : Brand COB leds as Cree Osram Lumileds Bridgelux...

Contact Now

Viewing angle 36° COB Lens PMMA material for indoor lighting super bright light spot Diameter 55mm

Application: Spot light, Down light, Tracking light, Recessed lamp, Ceilling light

Lens material: PMMA all available

Lens features:

●high K value

● Accurateviewing angle, Illuminated object is clear and recognizable.

●High light transmittance.

● Maintain high color resistanc.

● The main light halo fades naturally.

●Low glare and good shape light area.

Fit COB light source: Cree, Lumileds, Bridgelux, Citizen.....

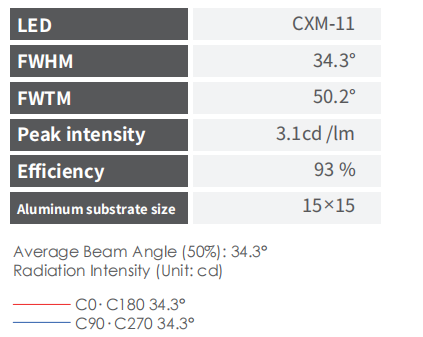

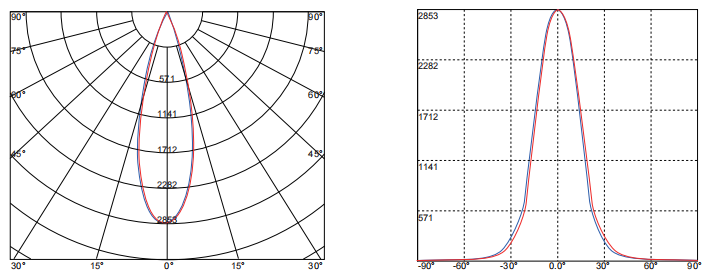

Specifications
Part no	Light-emitting surface	FWHM	Size (mm)	Typ.eff	Material
WT-55@26-10COBL11-Y1	¢6mm COB	10°	φ54.8×26.25	93%	PMMA
WT-55@26-15COBL11-Y1	¢11mm COB	15°		93%	PMMA
WT-55@26-24COBL11-Y1	¢11mm COB	24°		93%	PMMA
WT-55@26-36COBL11-Y1	¢11mm COB	36°		93%	PMMA
WT-55@26-50COBL11-Y1	¢11mm COB	50°		93%	PMMA

PMMA LED TIR Lens For Indoor Lighting Super Bright Light Spot

FAQ
1) Can l have a sample order?
A: Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
2) When can l get the quotation?
A: We usually give you an offer within 12 hours after we getyour inquiry,. But if you want to get the offer ASAP,please call us or emal us that we can
3) What is the lead time?
A:Sample needs about 3-5 days prepared, mass production time needs 1-2 weeks normally.
4) What are your main products?
A: Our main products are indoor lenses.
