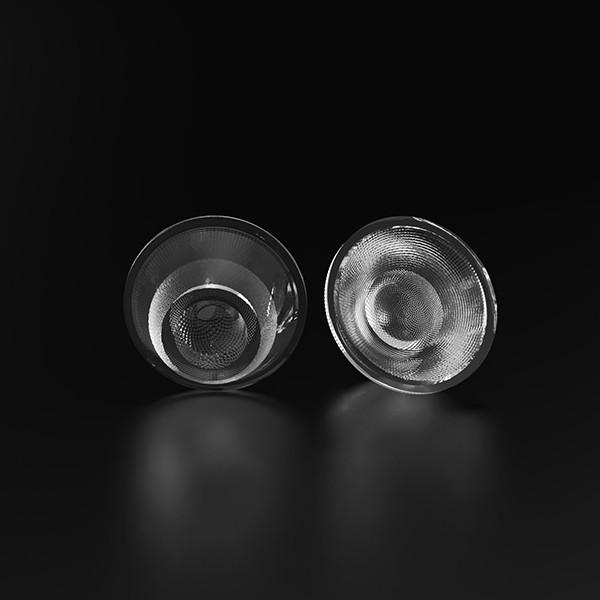

Accurately viewing angle 24° COB Lens PMMA material for indoor lighting

Brand Name : Wisertop

Model Number : WT-20@10-15COBL3-Y1

Certification : Rohs

Place of Origin : China

MOQ : 1pc

Price : Shenzhen Wisertop Technology Co.,Ltd

Supply Ability : 100,000 day

Delivery Time : 1-2 weeks

Packaging Details : Master carton

Material : PMMA

Lens type : TIR Lens

Efficiency : 93%

Certificates : Rohs

Working temperature : -40°C~+70°C

Light source : Brand COB leds as Cree Osram Lumileds Bridgelux...

Contact Now

Accurately viewing angle 24° COB Lens PMMA material for indoor lighting

Application: Spot light, Down light, Tracking light, Recessed lamp, Ceilling light

Lens material: PMMA all available

Lens features:

●high K value
● Accurateviewing angle, Illuminated object is clear and recognizable.
●High light transmittance.
● Maintain high color resistanc.
● The main light halo fades naturally.
●Low glare and good shape light area.

Fit COB light source: Cree, Lumileds, Bridgelux, Citizen.....

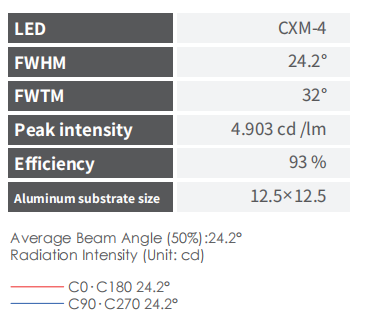

Specifications
Part no Light-emitting surface FWHM Size (mm) Typ.eff Material
WT-20@10-15COBL3-Y1 ¢3mm COB 15° φ19.8×9.48 0.93 PMMA
WT-20@10-24COBL3-Y1 ¢3mm COB 24° 0.93 PMMA
WT-20@10-36COBL3-Y1 ¢3mm COB 36° 0.93 PMMA
WT-20@10-50COBL3-Y1 ¢3mm COB 50° 0.93 PMMA

Accurately viewing angle 24° COB Lens PMMA material for indoor lighting

Accurately viewing angle 24° COB Lens PMMA material for indoor lighting

FAQ
1) Can l have a sample order?
A: Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
2) When can l get the quotation?
A: We usually give you an offer within 12 hours after we getyour inquiry,. But if you want to get the offer ASAP,please call us or emal us that we can
3) What is the lead time?
A:Sample needs about 3-5 days prepared, mass production time needs 1-2 weeks normally.
4) What are your main products?
A: Our main products are indoor lenses.
