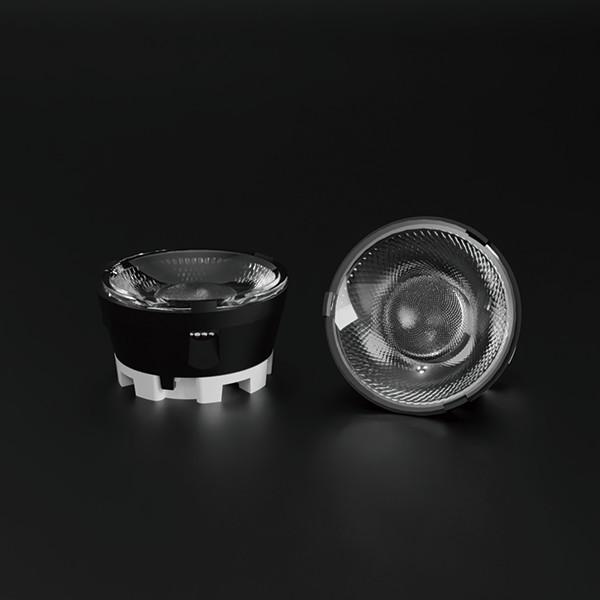

Narrow beam angle 15° Lens PMMA material for tracking light COB lens diameter 25mm
Application: Spot light, Down light, Tracking light, Recessed lamp, Ceilling light
Lens material: PMMA all available
Lens features:
●high K value
● Accurateviewing angle, Illuminated object is clear and recognizable.
●High light transmittance.
● Maintain high color resistanc.
● The main light halo fades naturally.
●Low glare and good shape light area.
Fit COB light source: Cree, Lumileds, Bridgelux, Citizen.....

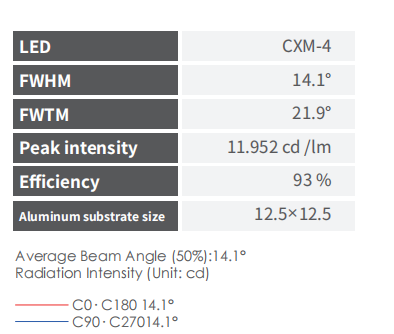

| Specifications | | | | | |
| Part no | Light-emitting surface | FWHM | Size (mm) | Typ.eff | Material |
| WT-25@12-15COBL4-Y1 | ¢3mm COB | 15° | φ24.8×12.5 | 0.93 | PMMA |
| WT-25@12-24COBL4-Y1 | ¢4mm COB | 24° | 0.93 | PMMA |
| WT-25@12-36COBL4-Y1 | ¢4mm COB | 36° | 0.93 | PMMA |
| WT-25@12-15COBL4-Y2 | ¢4mm COB | 15° | 0.88 | PC |
| WT-25@12-24COBL4-Y2 | ¢4mm COB | 24° | 0.88 | PC |
| WT-25@12-36COBL4-Y2 | ¢4mm COB | 36° | 0.88 | PC |
| WT-25@12-50COBL4-Y2 | ¢4mm COB | 50° | 0.88 | PC |
FAQ
1) Can l have a sample order?
A: Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
2) When can l get the quotation?
A: We usually give you an offer within 12 hours after we getyour inquiry,. But if you want to get the offer ASAP,please call us or emal us that we can
3) What is the lead time?
A:Sample needs about 3-5 days prepared, mass production time needs 1-2 weeks normally.
4) What are your main products?
A: Our main products are indoor lenses.
