RGBW color-mixing Lens PMMA material smart control light VA 15° diameter 35mm
Application: Spot light, Down light, Tracking light, Recessed lamp, Ceilling light
Lens material: PMMA all available
Lens features:
● It has excellent color mixing characteristics and is compatible with a variety of two-color chip
arrangements and some multi-color arrangement light sources.
● Lamp color drift is small after lens; Single color light source color drift is no more than 0.5SDCM after
lens, for example, light source fill in 2 SDCM, after lens no more than 2.5SDCM.
● The light angles at different view are clearly distinguishable.
● Soft and comfortable auxiliary lighting characteristics; no light exposure in the center of the spot, no
stray light after light be cut off, clean and comfortable.
● The interception of light is natural, lamp fit space better
Fit COB light source: Cree, Lumileds, Bridgelux, Citizen.....

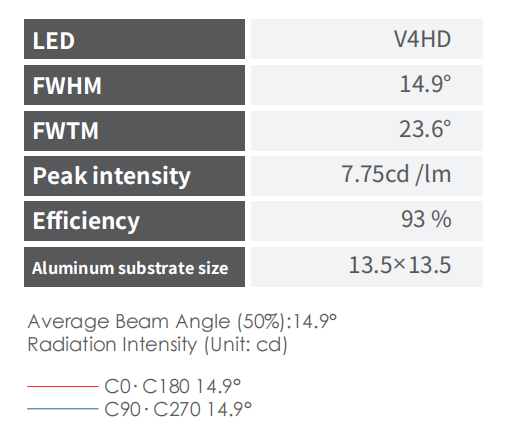

| Specifications | | | | | |
| Part no | Light-emitting surface | FWHM | Size (mm) | Typ.eff | Material |
| WT-35@17-M15ECOBL6-C2 | ¢4mm COB | 15° | φ34.8×17.55 | 93% | PMMA |
| WT-35@17-M24JCOBL6-C2 | ¢6mm COB | 24° | | 93% | PMMA |
| WT-35@17-M24JCOBL6-C2(PC) | ¢6mm COB | 24° | | 88% | PC |
| WT-35@17-M36COBL6-C2 | ¢6mm COB | 36° | | 93% | PMMA |
| WT-35@17-M36COBL6-C2(PC) | ¢6mm COB | 36° | | 88% | PC |
| WT-35@17-M50COBL6-C2 | ¢6mm COB | 50° | | 93% | PMMA |
| WT-35@17-M50COBL6-C2(PC) | ¢6mm COB | 50° | | 88% | PC |
FAQ
1) Can l have a sample order?
A: Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
2) When can l get the quotation?
A: We usually give you an offer within 12 hours after we getyour inquiry,. But if you want to get the offer ASAP,please call us or emal us that we can
3) What is the lead time?
A:Sample needs about 3-5 days prepared, mass production time needs 1-2 weeks normally.
4) What are your main products?
A: Our main products are indoor lenses.
