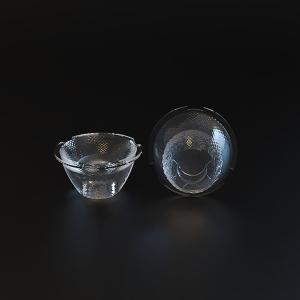

Bio-color mixing Lens PC material smart control light VA 50° down light diameter 35mm
Application: Spot light, Down light, Tracking light, Recessed lamp, Ceilling light
Lens material: PMMA all available
Lens features:
● It has excellent color mixing characteristics and is compatible with a variety of two-color chip
arrangements and some multi-color arrangement light sources.
● Lamp color drift is small after lens; Single color light source color drift is no more than 0.5SDCM after
lens, for example, light source fill in 2 SDCM, after lens no more than 2.5SDCM.
● The light angles at different view are clearly distinguishable.
● Soft and comfortable auxiliary lighting characteristics; no light exposure in the center of the spot, no
stray light after light be cut off, clean and comfortable.
● The interception of light is natural, lamp fit space better
Fit COB light source: Cree, Lumileds, Bridgelux, Citizen.....
| Specifications | | | | | |
| Part no | Light-emitting surface | FWHM | Size (mm) | Typ.eff | Material |
| WT-35@17-M15ECOBL6-C2 | ¢4mm COB | 15° | φ34.8×17.55 | 93% | PMMA |
| WT-35@17-M24JCOBL6-C2 | ¢6mm COB | 24° | | 93% | PMMA |
| WT-35@17-M24JCOBL6-C2(PC) | ¢6mm COB | 24° | | 88% | PC |
| WT-35@17-M36COBL6-C2 | ¢6mm COB | 36° | | 93% | PMMA |
| WT-35@17-M36COBL6-C2(PC) | ¢6mm COB | 36° | | 88% | PC |
| WT-35@17-M50COBL6-C2 | ¢6mm COB | 50° | | 93% | PMMA |
| WT-35@17-M50COBL6-C2(PC) | ¢6mm COB | 50° | | 88% | PC |
