Uniform Light Series PMMA TIR Lens For Wall Washer High Lighting Efficiency

Name: Uniform Light Series PMMA TIR Lens For Wall Washer High Lighting Efficiency
Brand: Wisertop
Price: 1 USD

Brand Name : Wisertop

Place of Origin : China

MOQ : 1pc

Price : Shenzhen Wisertop Technology Co.,Ltd

Supply Ability : 100,000 day

Delivery Time : 1-2 weeks

Packaging Details : Master carton

Model Number : WT-35@11-AVG15-L6

Certification : Rohs

Material : PC

Lens type : TIR lens

Beam angle : 15 degree

Application : indoor lighting fixture

Light sources : Brand COB as Luminus, Bridgelux Cree....

Contact Now

PMMA Lens Uniform light Series Lens for wall washer High performance lens

Application: Down light, Ceilling light, Hotel Down light

Lens material: PMMA all available

Lens features:

● Low glare

● Natural light cutting, better fusion space

● Wide viewing angle distribution, full and uniform

● Clean, integrated and uniformly distributed deep anti-glare light distribution type

Fit COB light source: Cree, Lumileds, Bridgelux, Citizen.....

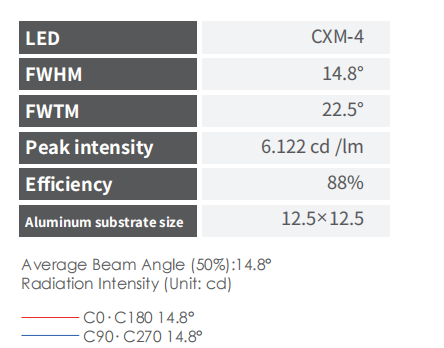

Specifications
Part no	Light-emitting surface	FWHM	Size (mm)	Typ.eff	Material
WT-35@11-AVG15-L6	¢4mm COB	15°	φ34.8×12.6	0.88	PC
WT-35@11-AVG24-L6	¢6mm COB	24°		0.88	PC
WT-35@11-AVG24S-COBL6	¢6mm COB	24°		0.88	PC
WT-35@11-AVG36-L6	¢6mm COB	36°		0.88	PC
WT-35@11-AVG55-L6	¢6mm COB	60°		0.88	PC

Uniform Light Series PMMA TIR Lens For Wall Washer High Lighting Efficiency

FAQ
1) Can l have a sample order?
A: Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
2) When can l get the quotation?
A: We usually give you an offer within 12 hours after we getyour inquiry,. But if you want to get the offer ASAP,please call us or emal us that we can
3) What is the lead time?
A:Sample needs about 3-5 days prepared, mass production time needs 1-2 weeks normally.
4) What are your main products?
A: Our main products are indoor lenses.
