24 Degree Match Luminus COB LED Lenses For Tracking Light 88% Efficiency

Name: 24 Degree Match Luminus COB LED Lenses For Tracking Light 88 Efficiency
Brand: Wisertop
Price: 1 USD

Brand Name : Wisertop

Model Number : WT-35@11-AVG24S-L6

Certification : Rohs

Place of Origin : China

MOQ : 1pc

Price : Shenzhen Wisertop Technology Co.,Ltd

Supply Ability : 100,000 day

Delivery Time : 1-2 weeks

Packaging Details : Master carton

Light source : Luminus

Material : PC

Working temperature : -40°C~+90°C

Certificates : Rohs

Lens type : TIR Les

Efficiency : 88%

Contact Now

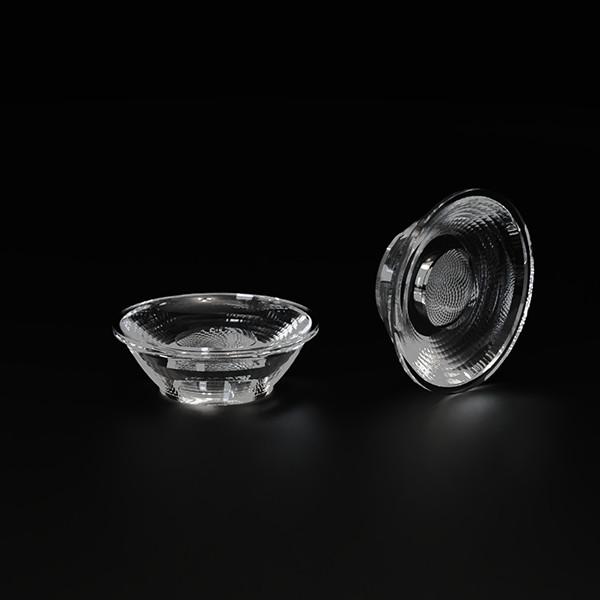

PC material beam angle 24° match Luminus COB Lens for tracking light diameter 35mm Lens

Application: Spot light, Down light, Tracking light, Recessed lamp, Ceilling light

Lens material: PC material

Features:

● Low glare

● Natural light cutting, merging into nature

● Wide viewing angle distribution, full and uniform

● Clean, integrated and uniformly distributed deep anti-glare light distribution type

Fit COB light source: Cree, Luminus, Bridgelux, Citizen.....

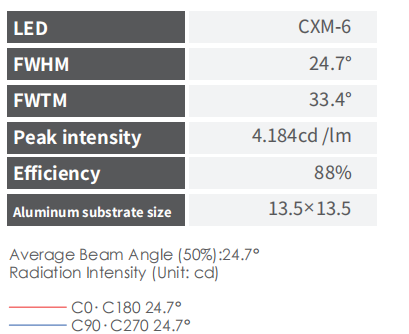

Specifications
Part no	Light-emitting surface	FWHM	Size (mm)	Typ.eff	Material
WT-35@11-AVG15-L6	¢4mm COB	15°	φ34.8×12.6	88%	PC
WT-35@11-AVG24-L6	¢6mm COB	24°		88%	PC
WT-35@11-AVG24S-COBL6	¢6mm COB	24°		88%	PC
WT-35@11-AVG36-L6	¢6mm COB	36°		88%	PC
WT-35@11-AVG55-L6	¢6mm COB	50°		88%	PC

24 Degree Match Luminus COB LED Lenses For Tracking Light 88% Efficiency

FAQ
1) Can l have a sample order?
A: Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
2) When can l get the quotation?
A: We usually give you an offer within 12 hours after we getyour inquiry,. But if you want to get the offer ASAP,please call us or emal us that we can
3) What is the lead time?
A:Sample needs about 3-5 days prepared, mass production time needs 1-2 weeks normally.
4) What are your main products?
A: Our main products are indoor lenses.
