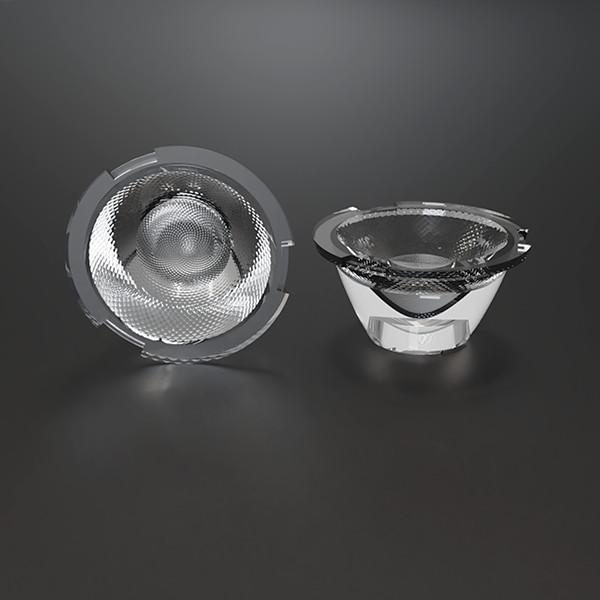

Wall Washer LED Lamp Lens COB Lenses Narrow Viewing Angle 15 Degree

Name: Wall Washer LED Lamp Lens COB Lenses Narrow Viewing Angle 15 Degree
Brand: Wisertop
Price: 1 USD

Brand Name : Wisertop

Place of Origin : China

MOQ : 1pc

Price : Shenzhen Wisertop Technology Co.,Ltd

Supply Ability : 100,000 day

Delivery Time : 1-2 weeks

Packaging Details : Master carton

Model Number : WT-35@17-15COBL6-C1

Certification : Rohs

Light source : Brand COB leds as Cree Bridgelux Lumileds Osram...

Material : PMMA

Working temperature : -40°C~+70°C

Certificates : Rohs

Lens type : TIR Les

Efficiency : 93%

Contact Now

Soft light spot Wall Washher lamp COB lens PMMA material Narrow viewing angle 15 degree

Application: Spot light, Down light, Tracking light, Recessed lamp, Ceilling light

Lens material: PMMA all available

Lens features:

● Low glare.

● Strong visual impact; the obvious cut-off line clearly cut off lightng area and the non-lighing area.

● Perform excellently on color mixing

● Super bright and highly uniform anti-glare light.

Fit COB light source: Cree, Lumileds, Bridgelux, Citizen.....

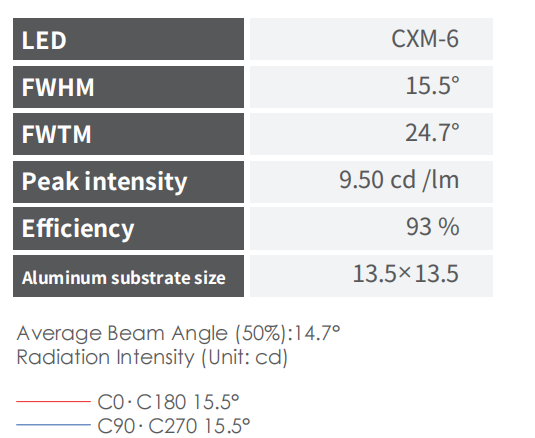

Specifications
Part no	Light-emitting surface	FWHM	Size (mm)	Typ.eff	Material
WT-35@17-15COBL6-C1	¢4mm COB	15°	φ34.8×17.55	93%	PMMA
WT-35@17-15COBL6-C1 (transparent)	¢6mm COB	15°		93%	PMMA
WT-35@17-24ACOBL6-C1	¢6mm COB	24°		93%	PMMA
WT-35@17-24DCOBL6-C1	¢6mm COB	24°		93%	PMMA
WT-35@17-36COBL6-C1	¢6mm COB	36°		93%	PMMA
WT-35@17-60COBL6-C1	¢6mm COB	60°		93%	PMMA

Wall Washer LED Lamp Lens COB Lenses Narrow Viewing Angle 15 Degree

FAQ
1) Can l have a sample order?
A: Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
2) When can l get the quotation?
A: We usually give you an offer within 12 hours after we getyour inquiry,. But if you want to get the offer ASAP,please call us or emal us that we can
3) What is the lead time?
A:Sample needs about 3-5 days prepared, mass production time needs 1-2 weeks normally.
4) What are your main products?
A: Our main products are indoor lenses.
