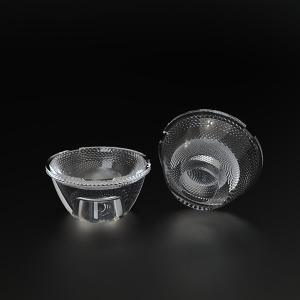

PC Material COB Lens 50mm Led Lens For Soft Light Spot VA 60° Low UGR

Name: PC Material COB Lens 50mm Led Lens For Soft Light Spot VA 60 Low UGR
Brand: Wisertop
Price: 1 USD

Quality PC Material COB Lens 50mm Led Lens For Soft Light Spot VA 60° Low UGR wholesale

Brand Name : Wisertop

Model Number : WT-50@24-60COBL9-C3

Certification : Rohs

Place of Origin : China

MOQ : 1pc

Price : Shenzhen Wisertop Technology Co.,Ltd

Supply Ability : 100,000 day

Delivery Time : 1-2 weeks

Packaging Details : Master carton

Material : PC

Lens type : TIR Lens

Efficiency : 88%

Certificates : Rohs

Working temperature : -40°C~+90°C

Light source : Brand COB leds as Cree Osram Lumileds Bridgelux...

Contact Now

COB led Lens hotel cut-off Lens PC material for soft light spot VA 60° low UGR diameter 50mm

Application: Spot light, Down light, Tracking light, Recessed lamp, Ceilling light

Lens material: PC

Lens features:

● Clear visual viewing angle at different angles.

● Suitable for deep anti-glare, high requirement of light shap.

● Highly uniform color consistance and light intensity.

● Natural faded light, Full intergration light into natural .

● Extremely soft light spot.

Fit COB light source: Cree, Lumileds, Bridgelux, Citizen.....

Specifications
Part no	Light-emitting surface	FWHM	Size (mm)	Typ.eff	Material
WT-50@24-15COBL9-C3	¢9mm COB	15°	φ49.8×23.85	88%	PC
WT-50@24-24COBL9-C3	¢9mm COB	24°		88%	PC
WT-50@24-36COBL9-C3	¢9mm COB	36°		88%	PC
WT-50@24-60COBL9-C3	¢9mm COB	60°		88%	PC

FAQ
1) Can l have a sample order?
A: Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
2) When can l get the quotation?
A: We usually give you an offer within 12 hours after we getyour inquiry,. But if you want to get the offer ASAP,please call us or emal us that we can
3) What is the lead time?
A:Sample needs about 3-5 days prepared, mass production time needs 1-2 weeks normally.
4) What are your main products?
A: Our main products are indoor lenses.
