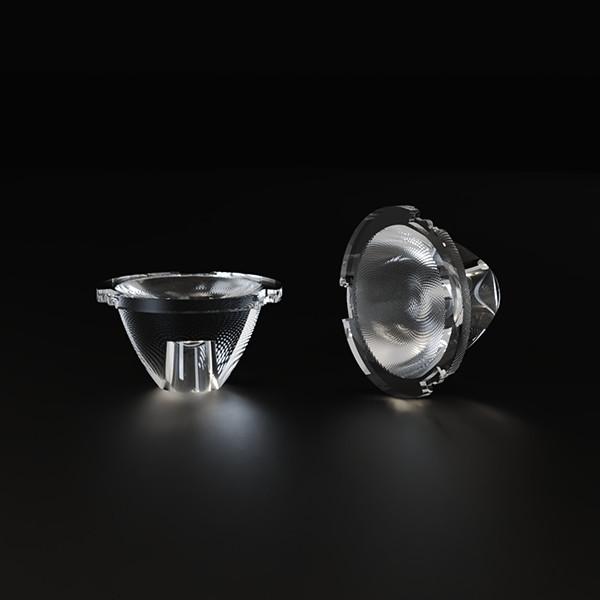

Viewing Angle 36 Degree Led Spotlight Lens Diameter 23mm Anti Glare

Name: Viewing Angle 36 Degree Led Spotlight Lens Diameter 23mm Anti Glare
Brand: Wisertop
Price: 1 USD

Brand Name : Wisertop

Model Number : WT-23@13-36A-XP3-S1

Certification : Rohs

Place of Origin : China

MOQ : 1pc

Price : Shenzhen Wisertop Technology Co.,Ltd

Supply Ability : 100,000 day

Delivery Time : 1-2 weeks

Packaging Details : Master carton

Light source : Luminus CXM-3

Material : PMMA

Working temperature : -40°C~+70°C

Certificates : Rohs

Lens type : TIR Les

Efficiency : 92%

Contact Now

Crossing light Lens PMMA material Viewing angle 36° for Linear spot lamp diameter 23mm

Application: Linear light, Celling light, Recessed light

Lens material: PMMA material

Features:

● High directionality, accurate light control route

● It can be applied to the shading angle of larger lamps, which can ensure high light outlet efficiency under the condition of ultra-small outlet.

● Greater shade angles can bring better anti-glare lighting effects

● Light distribution type of clean, uniform and complete faded spots

Fit SMD light source: XPE/SST10/¢3mm COB

Specifications
Part no	Light-emitting surface	FWHM	Size (mm)	Typ.eff	Material
WT-23@13-24A-XP3-S1	XPE/SST10/¢3mm COB	24°	φ23.2×12.5	0.92	PMMA
WT-23@13-36A-XP3-S1	XPE/SST10/¢3mm COB	36°	φ23.2×12.5	0.92	PMMA

Viewing Angle 36 Degree Led Spotlight Lens Diameter 23mm Anti Glare

FAQ
1) Can l have a sample order?
A: Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
2) When can l get the quotation?
A: We usually give you an offer within 12 hours after we getyour inquiry,. But if you want to get the offer ASAP,please call us or emal us that we can
3) What is the lead time?
A:Sample needs about 3-5 days prepared, mass production time needs 1-2 weeks normally.
4) What are your main products?
A: Our main products are indoor lenses.
