88% Efficiency 24 Degree SMD LED Lens For Ceilling Lamp Diameter 55mm

Shenzhen wisertop optics Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

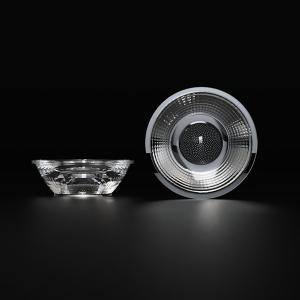

88% Efficiency 24 Degree SMD LED Lens For Ceilling Lamp Diameter 55mm

Brand Name : Wisertop

Model Number : WT-55@19-AVG24-L9

Certification : Rohs

Place of Origin : China

MOQ : 1pc

Price : Shenzhen Wisertop Technology Co.,Ltd

Supply Ability : 100,000 day

Delivery Time : 1-2 weeks

Packaging Details : Master carton

Light source : Cree COB or SMD led module

Material : PC

Working temperature : -40°C~+90°C

Certificates : Rohs

Lens type : TIR Les

Efficiency : 88%

Contact Now

SMD LED Lens PC material Wide viewing angle 24° ceilling lamp diameter 55mm

Application: Spot light, Down light, Tracking light, Recessed lamp, Ceilling light

Lens material: PC material

Features:
● Low glare
● Natural light cutting, merging into nature
● Wide viewing angle distribution, full and uniform
● Clean, integrated and uniformly distributed deep anti-glare light distribution type

Fit COB light source: Cree, Luminus, Bridgelux, Citizen.....

Specifications
Part no Light-emitting surface FWHM Size (mm) Typ.eff Material
WT-55@19-AVG24-L9 ¢9mm COB 24° φ54.8×19.5 88% PC
WT-55@19-AVG36-L9 ¢9mm COB 36° 88% PC
WT-55@19-AVG55-L9 ¢9mm COB 50° 88% PC
WT-55@19-AVG60-L11 ¢9mm COB 60° 88% PC
WT-55@19-AVG60S-COBL11 ¢9mm COB 60° 88% PC

88% Efficiency 24 Degree SMD LED Lens For Ceilling Lamp Diameter 55mm

88% Efficiency 24 Degree SMD LED Lens For Ceilling Lamp Diameter 55mm

FAQ
1) Can l have a sample order?
A: Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
2) When can l get the quotation?
A: We usually give you an offer within 12 hours after we getyour inquiry,. But if you want to get the offer ASAP,please call us or emal us that we can
3) What is the lead time?
A:Sample needs about 3-5 days prepared, mass production time needs 1-2 weeks normally.
4) What are your main products?
A: Our main products are indoor lenses.
